Grandstream GDMS Cloud

This article describes the installation and configuration steps for Grandstream GDMS Cloud devices.

Connecting

Log in to your Grandstream Cloud account at https://www.gdms.cloud/gwn

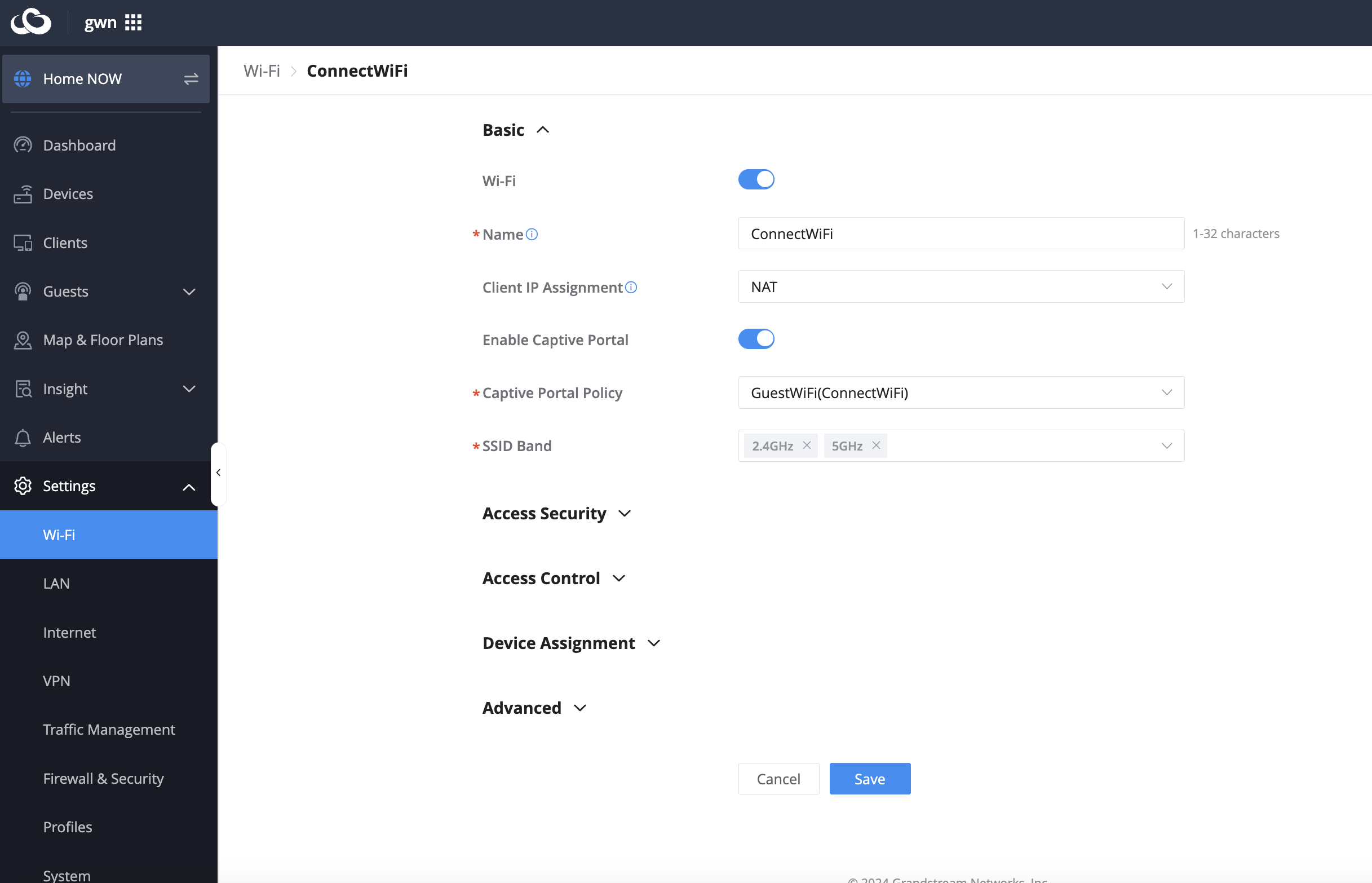

Go to Settings / Wi-Fi and configure:

WiFi: Enabled
SSID: GuestWiFi (set any SSID name)
Client IP Assignment: NAT
Enable Captive portal: Enabled
Captive Portal Policy: wifipolicy
SSID Band: Dual Band
Security Type: Open

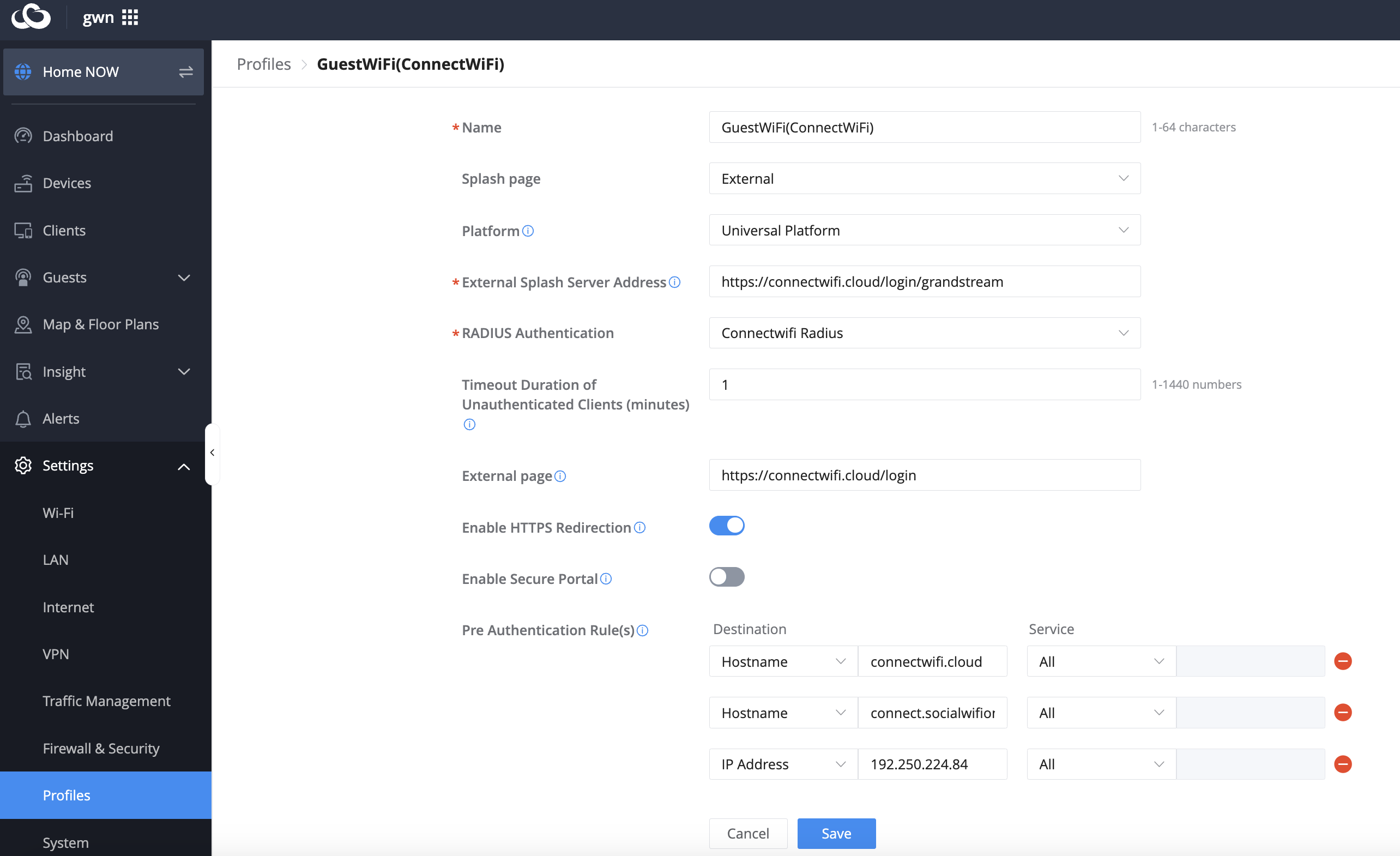

Go to Settings / Profiles page:

Name: GuestWiFi

Splash page: External

Platform: Universal platform

External Splash Server Address: https://connectwifi.cloud/login/grandstream

RADIUS Authentication: RADIUS

Redirect URL: your redirect URL

Enable HTTPS Redirection: Enabled

Enable Secure Portal: Disabled

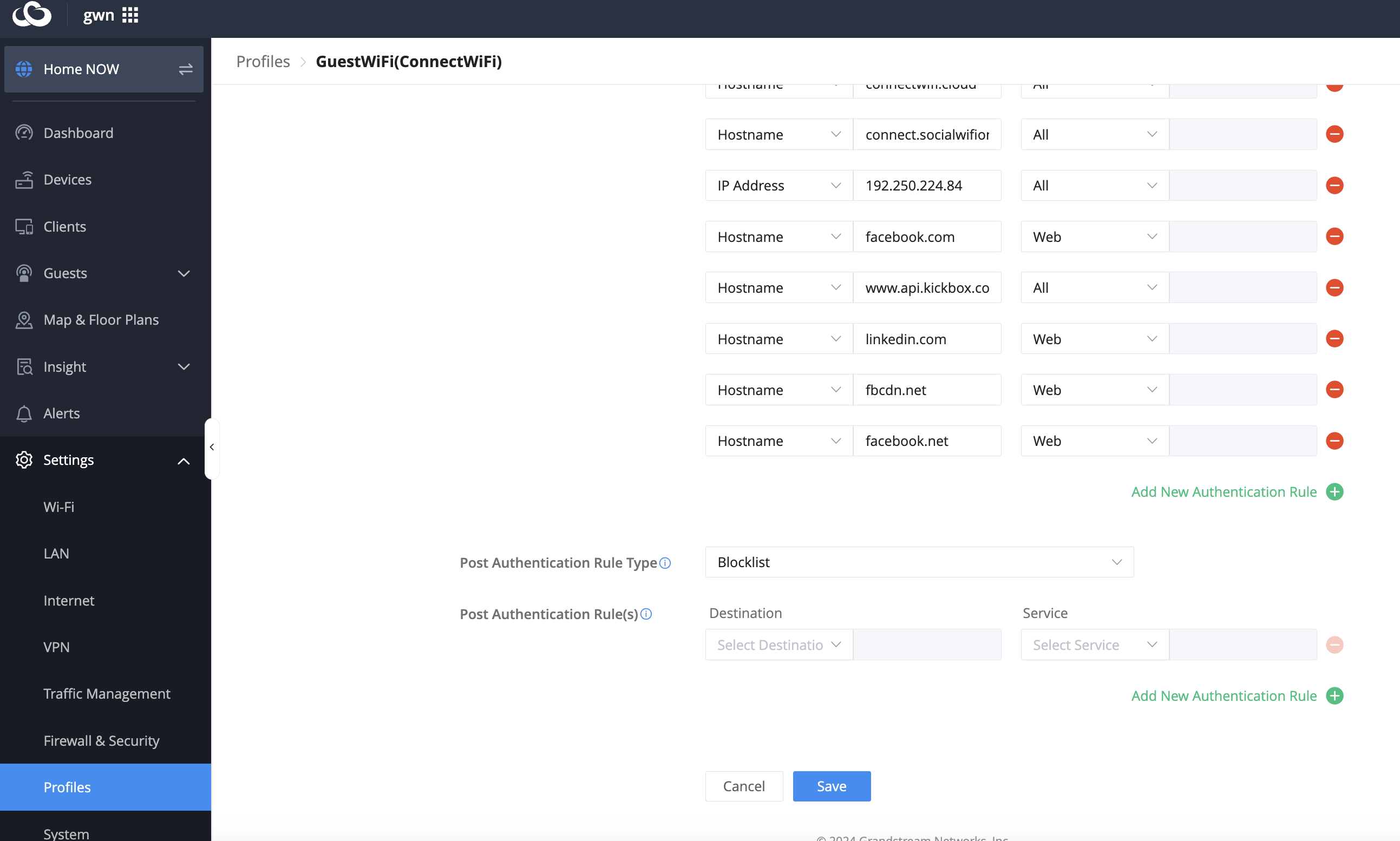

Pre-Authentication Rule(s): add following domains

socialwifionline.com

connectwifi.cloud

192.250.224.84

Always white list all the Social sites as described here​. Kindly scroll down to the bottom and white list all.

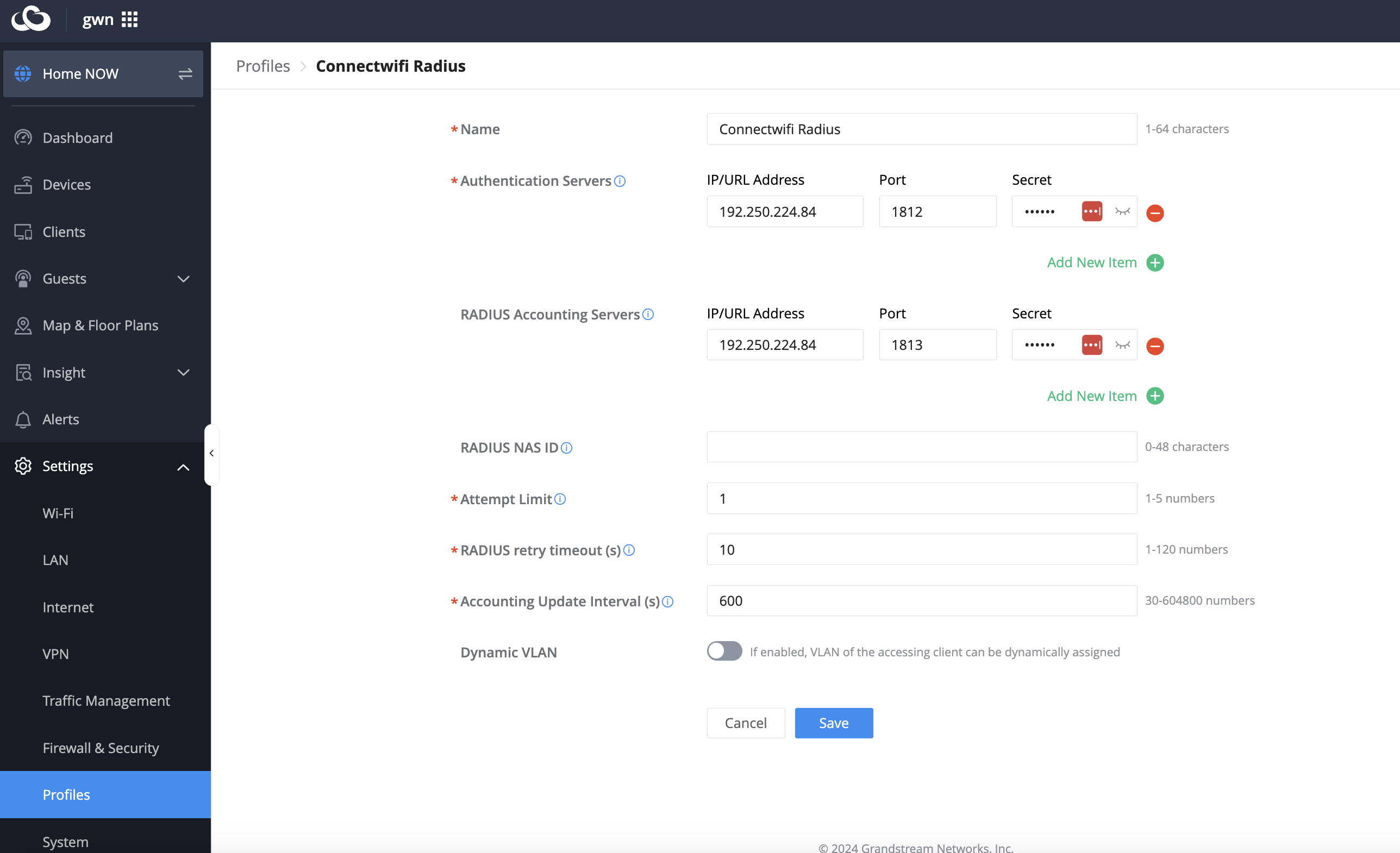

From Policy List page configure RADIUS Server:

Name: RADIUS
Authentication Servers:
Server Address: 192.250.224.84
Port: 1812
Secret: (contact our office)
RADIUS Accounting Servers:
Server Address: 192.250.224.84
Port: 1813
Secret: (contact our office)
Attempt Limit: 1
RADIUS retry timeout: 10
Accounting Update Interval: 600
Dynamic VLAN: Disabled

If you face any issues, please get in touch with us at support@socialwifionline.com.
