Ruijie / Reyee
coThis article describes installation and configuration steps for Ruijie / Reyee. Gateway tested EG209GS, ReyeeOS 1.216.1504.
Radius support for login/logout was added for EG305GH-E and EG310GH-E models.
Currently, it is not possible to control the bandwidth quota limit.
RG-EG105G-V2
RG-EG105G-P-V2
RG-EG210G-P
RG-EG210G-P-E
RG-EG209GS
RG-EG305GH-P-E
RG-EG310GH-E
RG-EG310GH-P-E
EG105GW(T)
EG105GW(X)
If these gateways are used, any Ruijie / Reyee AP model will be able to use captive portal functionality.
Connecting |
Log in to your Ruijie cloud account.

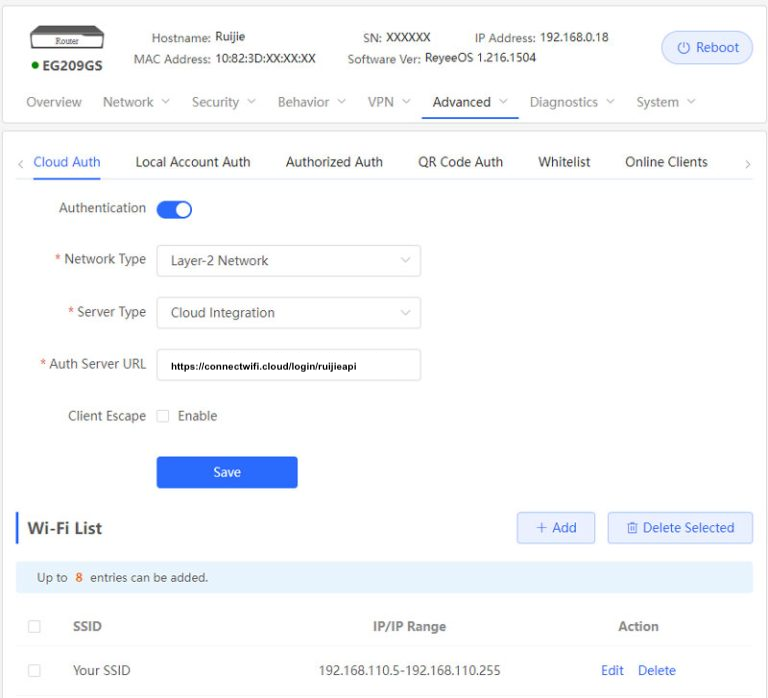

Go to the Advanced / Cloud Auth section and configure the following:
Network Type: Layer-2 Network
Server Type: Cloud Integration
Auth Server URL: https://connectwifi.cloud/login/ruijieapi
Client Escape: disabled
Save changes.

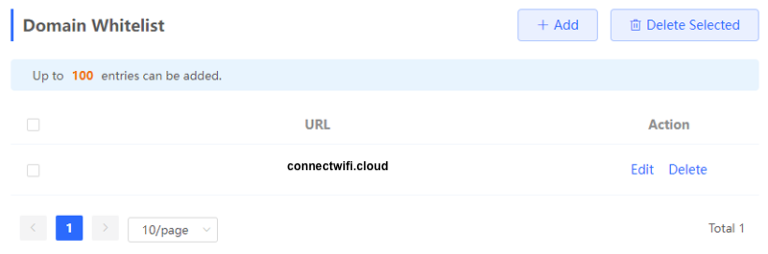

Whitelist all required portal URLs.
Additional Setup Instructions |
If you are unsure how to configure your device, please open the Ruijie Cloud.

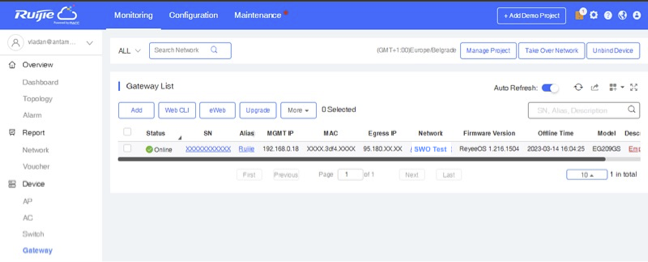

Find the Gateway page under Monitoring – Device.
Click the serial number SN in the Gateway List

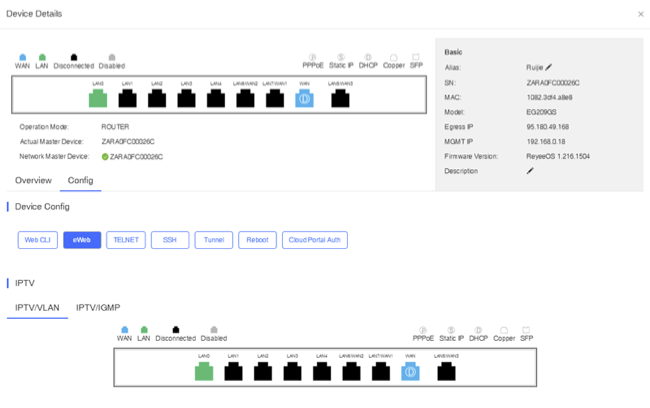

In the Device Config section, click the eWeb button to open the popup and then click to connect with the URL to your device.
When the page opens, you will see your devices, and then you can proceed with the setup from the beginning of this page.
Troubleshooting

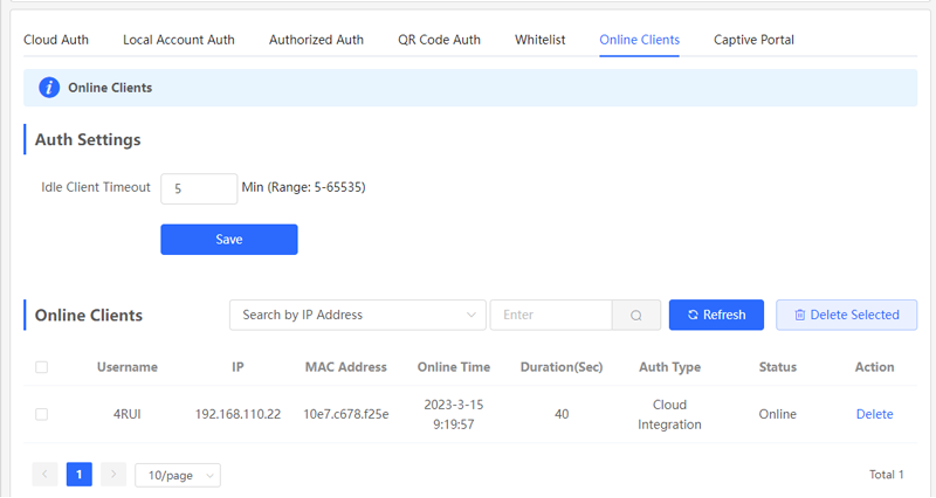

- Ruijie / Reyee devices can control and report time usage, session start and end times, hotspot names, locations, and devices used. User sessions are saved into the session log and user status is updated after login and logout.
- After login, Page redirect option works as expected with a predefined URL on the Splash page.
